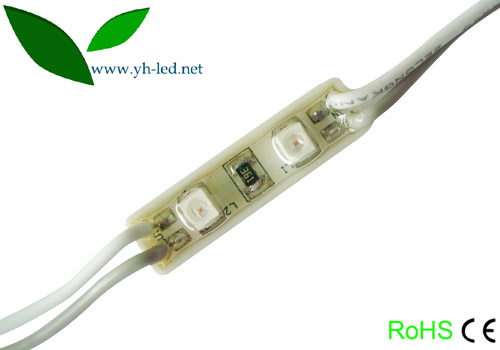

Part NO: YH3528-2607-2W
|
Features: ·Highest Brightness 3528 SMD LED Modules ·Easy Installation LED Modules can be easily installed with 3M double-sided sticking tape and connectors. ·Extended Life LED Modules have a life time of more than 50,000 hours. ·Totally waterproof With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin. ·Friendly environment Pb free. With CE/RoHS/SGS certificate, Waterproof LED Modules are up to 60% more energy efficient than neon. ·Safe Application Low voltage DC12V, safety and stable. Free maintenance |
|
Specification |
|
|
LED type |
3528 SMD LED |
|
Available colors |
W/M/R/G/B/Y |
|
Viewing angle(θ) |
120° |
|
Luminous flux(lm) |
|
|
R G B Y WW W CW |
|
|
3.3 9 2.7 3 15 15 15 |
|
|
Wavelength（nm/K） |
|
|
R G B Y WW W CW |
|
|
619-635 512-528 463-475 584-595 2700-3000 5500-6500 8000-11000 |
|
|
LED qty/Module |
2 pcs |
|
Life span |
50，000h |
|
Electric parameter |
|
|
Working voltage(V) |
DC12V |
|
Power consumption(W) |
0.3W |
|
Driving method |
Constant voltage |
|
Wires&series connection length |
|
|
Wires |
AWG 26# grey and white wires with the length of 50mm(between 2 connected modules)and 70mm(at the ends);”Grey:DC+,””White:DC-” |
|
Stand length in serial connection |
20pcs |
|
Maximum length in serial connection |
≤20pcs |
|
Outer Parameter |
|
|
Shell |
ABS |
|
Color |
Milk Yellow |
|
Dimension |
38.2*11.6*4.0mm |
|
Fixed mode |
|
|
Screw |
ABS |
|
Double-side adhesive |
30mm,double-sided adhesive |
|
Environment Parameter |
|
|
Working Temperature |
-40℃- +50℃ |
|
Storage Temperature |
-50℃- +60℃ |
|
IP grade |
IP65 |
