Features:

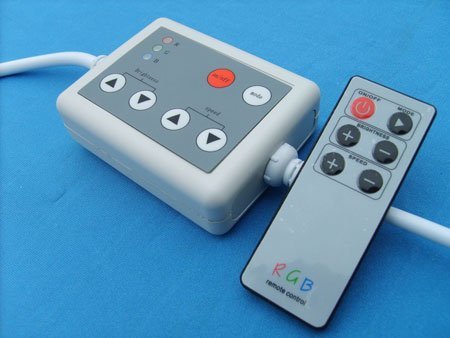

6-key infrared controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp
whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass
curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At
the same time,it has many advantages such as low price, easy connection and simplicity to use. According to
the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of
change, you could adjust brightness, static color choices and various dynamic changes in lighting effects
through infrared remote control.
Technical Parameters
Working temperature: -20-60 degree
Supply voltage: DC5V, 12V ,18V, 24V.specify the required voltage on orders?
Output: 3 channels
Connecting mode: common anode
External dimension: L89*W70*H28 mm
Packing size: L145*W95*H50mm
Net weight: 140g
Gross weight: 175g
Static power consumption: <1W
Output current: <4A(each channel)
Output power: 5V:<60W, 12V:<144W, 24V:<288W
Control method
Adopt button control method, function of each button as below (the same as remote):
On/off: The output switch;
Mode: is the style/color function key, could choose different color changes, 11changes in total;
Brightness +: controls the brightness of light, each press brightness level+1, 256 levels in total;
Brightness -: each press brightness level – 1.
Speed +: each press changing speed +1, 100 levels in total;
Speed -: each press changing speed -1.
Style changing table as below:
No. |
Style |
Remarks |
1 |
Static red |
Brightness adjust available Speed adjust not available
|
2 |
Static blue |
|
3 |
Static pink |
|
4 |
Static green |
|
5 |
Static yellow |
|
6 |
Static cyan |
|
7 |
Static white |
|
8 |
Three color jumpy change |
Brightness adjust available Speed adjust available |
9 |
Seven color jumpy change |
|
10 |
Three color gradually change |
Brightness adjust not available Speed adjust not available |
