Working temperature
|
-20-60
|
|
Supply voltage
|
DC5V, 12V, 24V
|
|
Size
|
L128*W65*H25mm
|
|
Net weight
|
185g
|
|
Output
|
Three CMOS drain- open output
|
|
Output current
|
<4A(each channel)
|
|
Connecting Mode
|
Common anode/ cathode
|
Work temperature: -20-60℃
Supply voltage: DC5V、DC12V、DC24V
Size:128*64*24mm Gross weight:210g
Out put: 3 channels
All of the brightness and the speed is adjustable
connecting mode: common anode / common cathode
output current: 4A*3
Control method

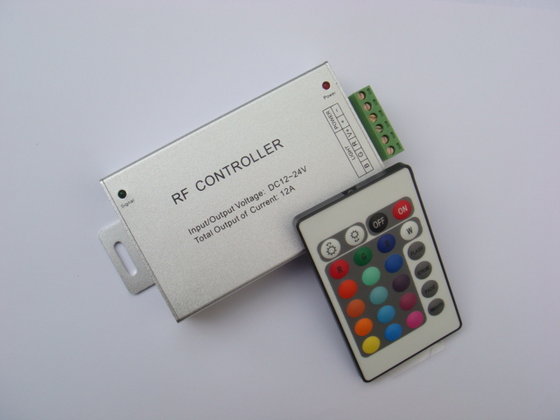

Adopt IR remoter to control the led controller, which has 24 buttons, the function of each button as the table below:
|
Brightness +( 256 in all ) |
Brightness-(256 in all ) |
Off |
On |
|
Static red |
Static green |
Static blue |
Static white |
|
Static orange |
Static pea green |
Static dark blue |
Single color stroboflash |
|
Static dark yellow |
Static cyan |
Static brown |
Single color Gradual changing |
|
Static yellow |
Static light blue |
Static pink |
3 base colors/7 colors fade change |
|
Static straw yellow |
Static sky blue |
Static purple |
3 base colors/ 7colors jumpy |
Direction: ①When switching to dynamic modes the button of “Brightness +”/ “Brightness -” means the speed of light change is up/ down, there are 100 step in all. ②The FADE and SMOOTH all have two modes, which are “3 base colors jumpy/7 colors jumpy” and “3 base colors fade/7 colors fade”, you can press one more time to change it. ③when FADE and SMOOTH, the “FLASH” and “STROBE” key are unvalid. ④When in the statick modes, press the “FLASH” /“STROBE” key, the mode will change to be “ the single color Stroboflash/ Gradual changing”.
Note：For more details please contact us
