Product information

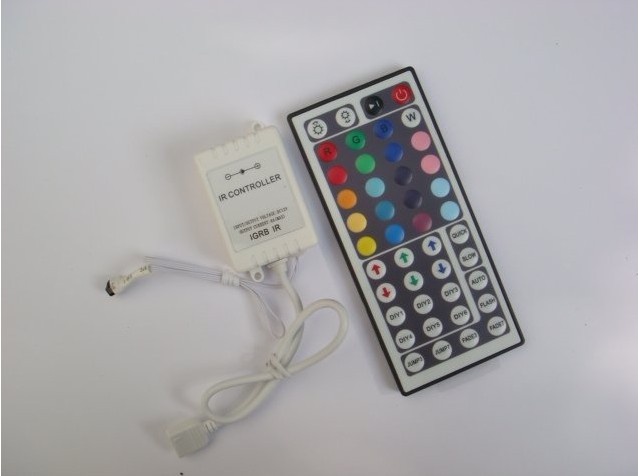

Name：44-key Infrared Controller

Specifications：DC5V,12V,24V

Introduction：44-key infrared controller adopts,the advanced micro control unit,it is used for controlling a variety of lamp.

Details：

Summarization

44-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp, whose source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Besides, you also could adjust random color by yourself freely.

Technical Parameters

Working temperature:-20-60

Supply voltage: DC5V, 12V, 18V, 24V optional (specify the required voltage on orders)

0utput: 3 channels

Connecting mode:common anode

External dimension:L63ΧW35ΧH22 mm

Controller dimension:L125ΧW56ΧH7mm

Packing size:L130ΧW60ΧH35 mm

Net weight: 60g

Gross weight: 90 g

Static power consumption: <1 W

Output current: <2 A (each channel)

Output power: 5V:<30W, 12V:<72W, 24V:<144W

Control method

Adopt IR remoter to control the led controller, which has 24 buttons, the function of each button as the table below:

Brightness +( 256 in all )	Brightness-(256 in all )	Off	On
Static red	Static green	Static blue	Static white
Static orange	Static pea green	Static dark blue	Single color stroboflash
Static dark yellow	Static cyan	Static brown	Single color Gradual changing
Static yellow	Static light blue	Static pink	3 base colors/7 colors fade change
Static straw yellow	Static sky blue	Static purple	3 base colors/ 7colors jumpy

Direction: ①When switching to dynamic modes the button of “Brightness +”/ “Brightness -” means the speed of light change is up/ down, there are 100 step in all. ②The FADE and SMOOTH all have two modes, which are “3 base colors jumpy/7 colors jumpy” and “3 base colors fade/7 colors fade”, you can press one more time to change it. ③when FADE and SMOOTH, the “FLASH” and “STROBE” key are unvalid. ④When in the statick modes, press the “FLASH” /“STROBE” key, the mode will change to be “ the single color Stroboflash/ Gradual changing”

Note：For more details please contact us
