Summarization

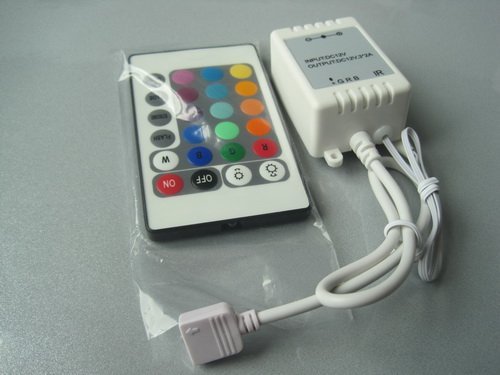

IR LED controller /24-key infrared led controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; It can controlled with strip lights.it has many advantages such as low price, easy connection and simplicity to use. Meanwhile,you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
Technical Parameters
Working temperature -20-60 °C
Supply voltage DC5V, 12V, 24V <optional >(for orders specify voltage)
0utput 3 channels
Connecting mode common anode
External dimension L63ΧW35ΧH22 mm
Packing size L105ΧW65ΧH40 mm
Net weight 50 g
Gross weight: 80 g
Output current: <2 A (each channel)
Output power: 5 V: <30W, 12V: <72W, 24V: <144W
Control method
Adopt IR remoter to control the led controller, which has 24 buttons, the function of each button as the table below:
Brightness +( 16 in all ) |
Brightness-( 16 in all ) |
Off |
On |
Static red |
Static green |
Static blue |
Static white |
Static orange |
Static pea green |
Static dark blue |
7 color jumpy change |
Static dark yellow |
Static cyan |
Static brown |
All fade out & fade in |
Static yellow |
Static light blue |
Static pink |
7 color fade change |
Static straw yellow |
Static sky blue |
Static purple |
3 base color jumpy |
Direction: When switching to four dynamic mode (7 color jumpy change, All fade out & fade in, 7 color fade change, 3 base color jumpy), the button of “Brightness +”/ “Brightness -” means the speed of light change is up/ down, there are 32 step in all.
Note:For more details please contact us
