Specifications
Work temperature：-20-60℃
Input voltage：DC5V, 12V ~24V
Size：160mmX95mmX51mm
Gross weight:300g
Output :4A*3ch
Power: 60W(5V), 144W(12V),288W(24V)
Funcation: 25 modes（All of the brightness and the speed is adjustable）
Control method

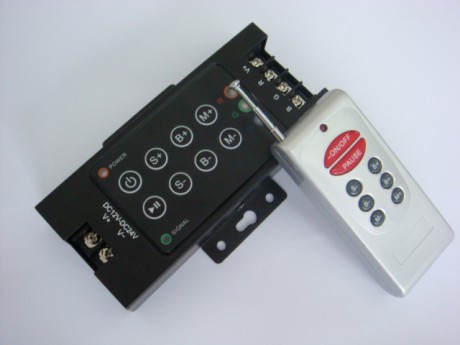

Adopt film button control and RF control, each film button function as follows,remarked in bracket is RF button’s:
ON/OFF:In any state，you could turn on or turn off the output of controller;
PAUSE:when you want to see the static effection of led ,you may press this button to pause.
S+:The speed changing progression will add one when you press the button every time, there are 100 steps ;
S-:The speed changing progression will subtract one when you press the button every time.
B+:Adjusting brightness button,the brightness progression will add one when you press the button every time,there are 256 steps;
B-:The brightness progression will subtract one when you press the button every time;
M+:Pattern function key, up direction,there are 25 programs in all.
M-:down direction.
Style changing table as below:
|
Items |
Patterns |
Remarks |
Items |
Patterns |
Remarks |
|
1 |
Static red |
Brightness is adjustable,Speed is unadjustable. |
14 |
Green stroboflash |
Speed and Brightness are adjustable |
|
2 |
Static green |
15 |
Blue stroboflash |
||
|
3 |
Static blue |
16 |
Yellow stroboflash |
||
|
4 |
Static yellow |
17 |
Purple stroboflash |
||
|
5 |
Static purple |
18 |
Cyan stroboflash |
||
|
6 |
Static cyan |
19 |
White stroboflash |
||
|
7 |
Static white |
20 |
R/B crossfade |
Brightness is unadjustable,Speed is adjustable. |
|
|
8 |
Three-color jumpy changing |
Speed and Brightness are adjustable |
21 |
B/G crossfade |
|
|
9 |
Seven-color jumpy changing |
22 |
G/R crossfade |
||
|
10 |
Three-color gradual changing |
Brightness is unadjustable,Speed is adjustable. |
23 |
All fade out&fade in |
|
|
11 |
Seven-color gradual changing |
24 |
Random stroboflash |
Speed and Brightness are adjustable |
|
|
12 |
Three-color flowing |
Speed and Brightness are adjustable |
25 |
Automation |
1～24 |
|
13 |
Red stroboflash |
|
|||
Note：For more details please contact us.
