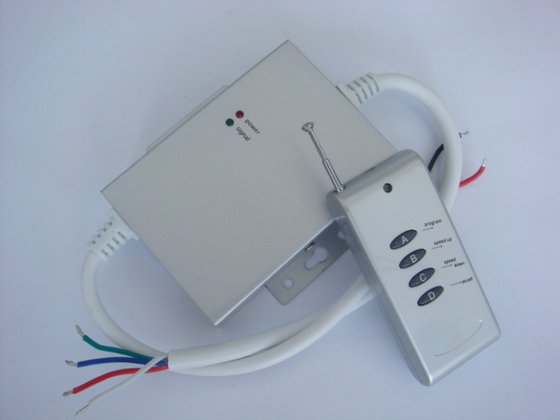

Name：RF 4-key Controller(Iron case)

• Specifications：DC12V,24V
• Introduction：
• Details：

  Specifications

  Work temperature: -20-60℃

  Supply voltage:DC12V、DC24V
  Size: 95*67*26mm

  Gross weight:300g

  Out put: 3 channels

  connecting mode: common anode /cathodee    output current: 4A*3
  funcation: 11 modes（the speed is adjustable，the brightness is unadjustable）

  Control method



  Adopt wireless control method, function of each button as below:

  Button “A” : is the style/color function key, could choose different color changes

  Button “B”: each press changing speed +1

  Button “C”: each press changing speed -1

  Button “D”: The output switch.

  Style changing table as below:

  Item	Patterns	remarks
  1	Static red
  2	Static Green
  3	Static Yellow
  4	Static Blue
  5	Static Pink
  6	Static cyan
  7	Static white
  8	3 Color step change	Button B and C is valid
  9	7 Color step change	Button B and C is valid
  10	3 Color fade change	Button B and C is valid
  11	7 Color fade change	Button B and C is valid



  Note：For more details please contact us.
