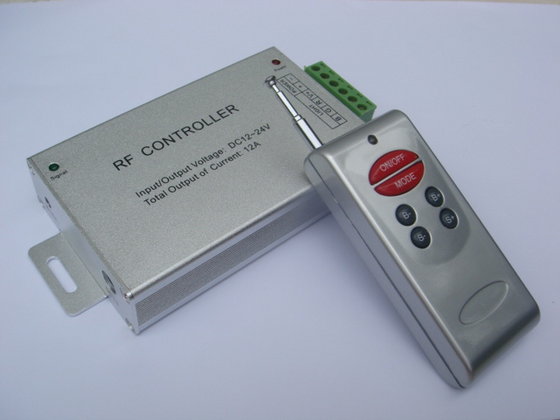

.jpg)
Specifications
Working temperature: -20-60 ℃
Supply voltage:DC12V, DC24V
Size:L128ΧW64ΧH24 mm
Gross weight:225g
Out put: 3 channels connecting mode: common anode/cathode
Output current: 4A*3
funcation: 21 modes（All of the brightness and the speed is adjustable）
Control method
Adopt wireless control method, function of each button as below:
On/off: The output switch;
Mode: is the style/color function key, could choose different color changes, 21changes in total;
B+: controls the brightness of output signal, each press brightness level+1, 256 levels in total;
B -: each press brightness level – 1;
S+: each press changing speed +1, 100 levels in total;
S -: each press changing speed -1.
Style changing table as below:
|
No |
Patterns |
Remarks |
No |
Patterns |
Remarks |
|
1 |
Static red |
Brightness is adjustable, Speed is unadjustable. |
12 |
Red stroboflash |
Speed and Brightness are adjustable |
|
2 |
Static blue |
13 |
Blue stroboflash |
||
|
3 |
Static purple |
14 |
Purple stroboflash |
||
|
4 |
Static green |
15 |
Green stroboflash |
||
|
5 |
Static yellow |
16 |
Yellow stroboflash |
||
|
6 |
Static cyan |
17 |
Cycan stroboflash |
||
|
7 |
Static white |
18 |
White stroboflash |
||
|
8 |
Three-color jumpy changing |
Speed and brightness are adjustable |
19 |
R/B cross fade |
Speed is adjustable, brightness is unadjustable |
|
9 |
Seven-color jumpy changing |
20 |
B/G cross fade |
||
|
10 |
Three-color gradual changing |
Speed is adjustable, brightness is unadjustable |
21 |
G/R cross fade |
|
|
11 |
Seven-color gradual changing |
|
|
|
Note：For more details please contact us.
