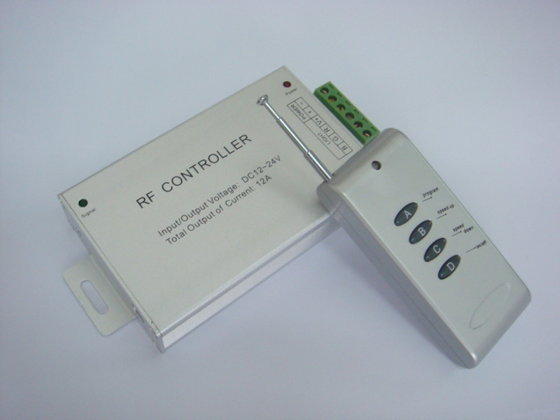

.jpg)
Specifications
Work temperature: -20-60℃
Supply voltage: DC12V、DC24V
Size: 128*64*24mm
Gross weight:225g
Out put: 3 channels connecting mode: common anode/cathode
output current: 4A*3
funcation: 11 modes（the speed is adjustable，the brightness is unadjustable）
Control method
Adopt wireless control method, function of each button as below:
Button “A” : is the style/color function key, could choose different color changes
Button “B”: each press changing speed +1
Button “C”: each press changing speed -1
Button “D”: The output switch.
Style changing table as below:
Item | Patterns | remarks |
1 | Static red |
|
2 | Static Green |
|
3 | Static Yellow |
|
4 | Static Blue |
|
5 | Static Pink |
|
6 | Static cyan |
|
7 | Static white |
|
8 | 3 Color step change | Button B and C is valid |
9 | 7 Color step change | Button B and C is valid |
10 | 3 Color fade change | Button B and C is valid |
11 | 7 Color fade change | Button B and C is valid |
