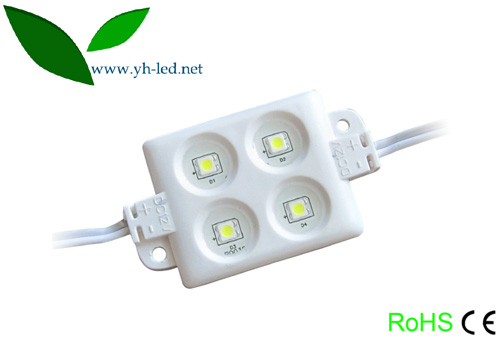

Part No: YH3528-5533-4W
Features:
*Super luminous flux, large viewing angle.
*High color consisence, long life span.
*Energy saving, environment-friendly.
*Injection molding process
*90% transmittance lens.
Application:
*Illuminating channel letters & signboard.
*Light boxes back Lighting(3-4CM).
Instruction:
|
LED Quantity |
3 Pcs |
3 Pcs |
4 Pcs |
4 Pcs |
|
Input voltage |
DC 12V |
|||
|
Input current |
0.0223 A |
0.0453 A |
0.1197 A |
0.0888 A |
|
Input Power |
0.268W |
0.544W |
1.436W |
1.065W |
|
Power factor |
>0.9 |
|||
|
Power efficiency |
>90% |
|||
|
Projection distance |
± 1m |
|||
|
Luminous |
20.16 |
42.948 |
58.67 |
53.8 |
|
Lighting efficiency |
>80% |
|||
|
color temperature |
6000±500K |
|||
|
Coloration Index |
Ra>75 |
Ra>75 |
Ra>80 |
Ra>80 |
|
Working temperature |
-20~ 40 ℃ |
|||
|
Storage temperature |
The storage temperature is -25~ 60 ℃ in no operating mode |
|||
|
Life Span |
> 30000Hrs |
|||
|
Material |
ABS |
|||
|

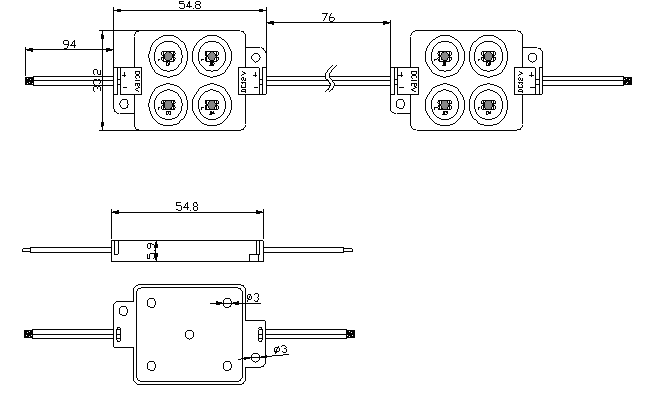

Dimension |
68.2*19.5* 5.7MM |
68.2*19.5* 5.7MM |
54.8*33.2* 5.9MM |
54.8*33.2* 5.9MM |
|
Net weight |
8g |
8g |
12g |
12g |
|
IP Rank |
IP65 |
|||
|
Quantity |
1/20 |
|||
