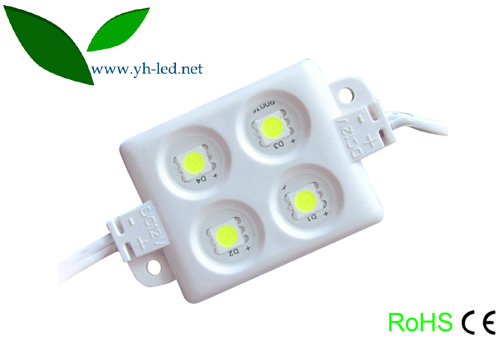

Part No:YH5050-5533-4W
Features:
*Super luminous flux, large viewing angle.
*High color consisence, long life span.
*Energy saving, environment-friendly.
*Injection molding process
*90% transmittance lens.
Application:
*Illuminating channel letters & signboard.
*Light boxes back Lighting(3-4CM).
Instruction:
LED Quantity |
4 Pcs |
Input Voltage |
DC 12V |
Input Power |
1.08W |
Power factor |
>0.9 |
Power efficiency |
>90% |
Projection distance |
± 1m |
Emitting color |
R/W/B/Y/G |
Luminous |
26/80/16/20.8/50 |
Lighting efficiency |
>80% |
color temperature |
2700~8000±500K |
Coloration Index |
Ra>75 |
Working temperature |
-20~ 40 ℃ |
Storage temperature |
The storage temperature is -25~ 60 ℃ in no operating mode |
Life Span |
> 50000Hrs |
Material |
ABS |

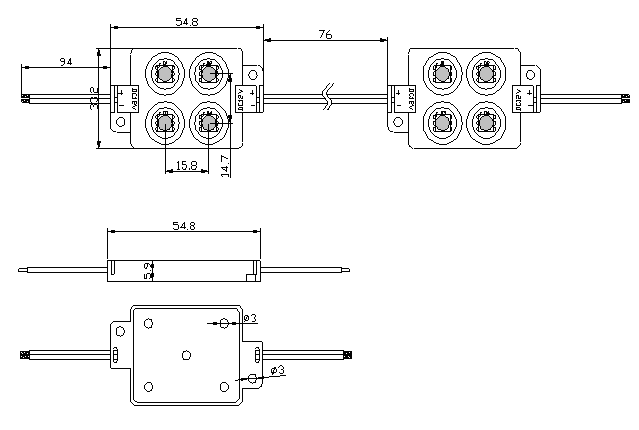

Dimension |
54*33.5*5.8MM |
Net weight |
8g |
IP Rank |
IP65 |
Quantity |
20 pcs in a chain |
