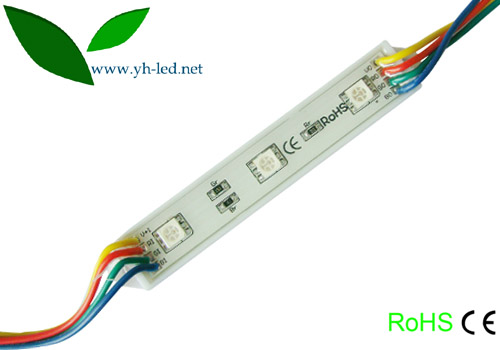

Part NO: YH5050-7715-3RGB
|
Features: ·Easy Installation LED Modules can be easily installed with 3M double-sided sticking tape and connectors. ·Extended Life LED Modules have a life time of more than 30,000 hours. ·Totally waterproof With IP67 protection degree, LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin. ·Friendly environment Pb free. With CE/RoHS/SGS certificate, LEDs Waterproof LED Modules are up to 60% more energy efficient than neon. ·Safe Application Low voltage DC12V, safety and stable. Free maintenance |
|
Specification |
|
|
LED type |
5050 SMD LED |
|
Available colors |
Full color |
|
Viewing angle(θ) |
120° |
|
Luminous flux(lm) |
|
|
R G B |
|
|
3 9.6 2.4 |
|
|
Wavelength（nm/K） |
|
|
R G B |
|
|
619-635 512-528 463-475 |
|
|
LED qty/Module |
3pcs |
|
Life span |
50，000h |
|
Electric parameter |
|
|
Working voltage(V) |
DC12V |
|
Power consumption(W) |
Max:0.72W |
|
Driving method |
Constant voltage |
|
Wires&series connection length |
|
|
Wires |
UL1007 20# Yellow,red ,green and blue wires, the length of 100mm;Yellow:V+,Red:r,Green:G,Blue;B. |
|
Stand length in serial connection |
20pcs |
|
Maximum length in serial connection |
≤20pcs |
|
Outer Parameter |
|
|
Shell |
ABS |
|
Color |
Milk Yellow |
|
Dimension |
77.2*18*4.5mm |
|
Fixed mode |
|
|
Screw |
Φ2.6--Φ3.0 |
|
Double-side adhesive |
64mm,double-sided adhesive |
|
Environment Parameter |
|
|
Working Temperature |
-40℃- +50℃ |
|
Storage Temperature |
-50℃- +60℃ |
|
IP grade |
IP65 |
